THE NAVIGATOR – NATURAL PROSTHETICS THROUGH THREE-DIMENSIONAL MOVEMENT

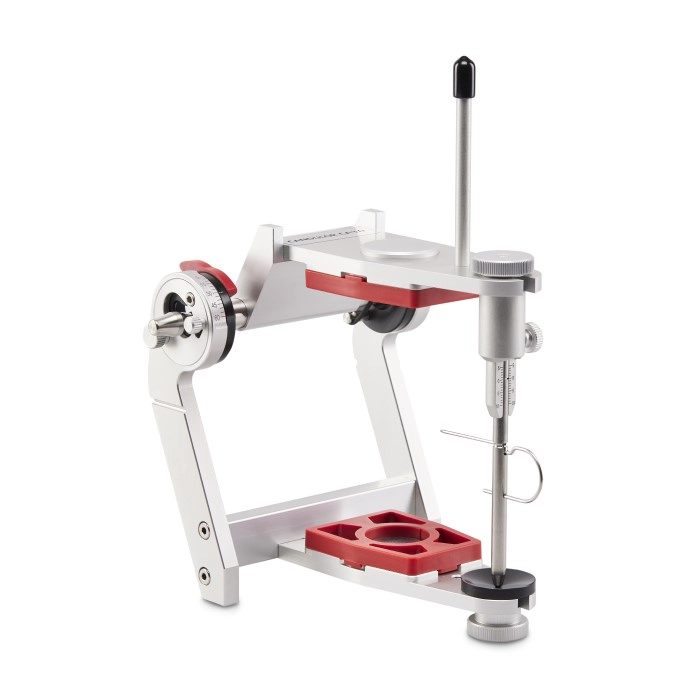

The challenge of creating highly esthetic patient work also calls for a natural function of the restoration. The CA 3.0 simulates the natural conditions of the jaw joint and thus offers excellent navigation for daily work.
The articulator excels through its double cone shape of the guided joint section. The technical construction of the articulator is designed to simulate threedimensional natural movements, and these, in turn, are essential for physiological positioning. The results is esthetic quality that works.
The plate system (Split-Cast) is another distinguishing simplification. The magnets are integrated into the articulator. This allows for clean adjustment without corrosion and plaster deposits.
Technical data
> Height: 150 mm
> Width: 145 mm
> Weight: 690 g
> Inner construction height:
100 mm (with Split-Cast)
> Depth: 160 mm
> Bonwill triangle: 110 mm
> Balkwill angle: 25°
> Retrusion track: 1.5 mm
> Immediate side-shift stop: 0 – 2.5 mm fix
> Angle of jaw track adjustable between
0° – 60°
> Incisal plate: 15°
> Material: anodized aluminum
